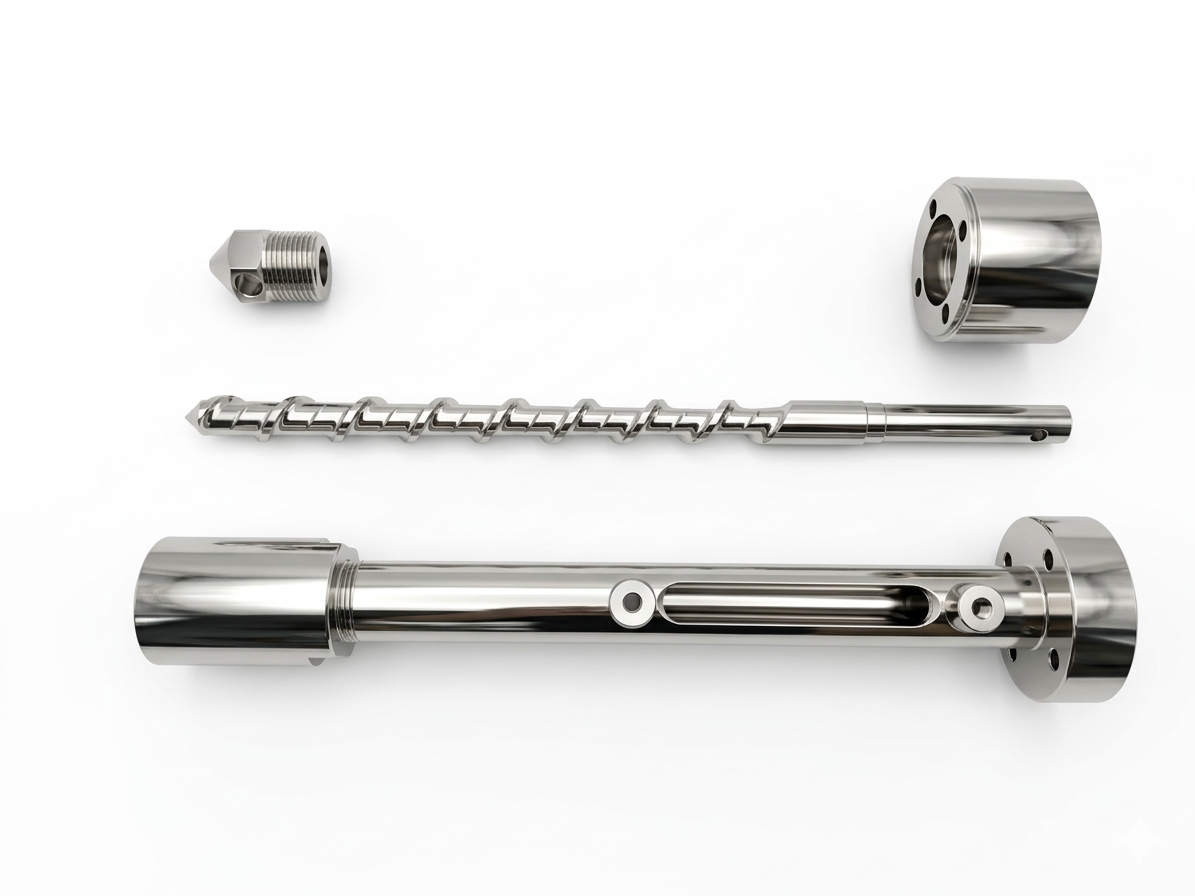

Stainless Steel Replacement Barrel & Screw
For Noztek Pro & Touch Extruders
Noztek Two-Stage Screw System: Enhanced Performance Engineering
Noztek has developed an advanced two-stage screw system specifically engineered to optimize barrel pressure development and increase extrusion throughput in professional polymer processing applications. This precision-designed screw architecture delivers superior material handling capabilities while maintaining consistent quality output.
Advanced Two-Stage Design Benefits
Enhanced Material Processing
- Increased material intake capacity through optimized feed zone geometry
- Progressive compression staging for controlled pressure development
- Improved heat generation through controlled shear mechanisms
- Higher throughput rates without compromising material quality
- Reduced residence time for temperature-sensitive materials
Professional Performance Advantages
- Consistent pressure development for uniform material flow
- Enhanced mixing capability for composite and filled materials
- Improved melt quality through controlled thermal management
- Reduced energy consumption per unit of output
- Superior dimensional stability in extruded products
Complete System Integration
Comprehensive Replacement Kit
Noztek provides a complete conversion system including:
- Precision-machined replacement barrel with optimized internal geometry
- Two-stage engineered screw with progressive compression design
- Heavy-duty thrust bearing assembly for high-pressure operation
- Steel coupling with keyway for secure, aligned connection
- Installation hardware for seamless system integration
Modular Design Benefits
- Easy material-specific changeover for diverse polymer processing
- Quick installation and removal minimizes downtime
- Interchangeable components support various material requirements
- Precision manufacturing ensures consistent performance
- Quality-controlled assembly for reliable operation
Technical Specifications
Barrel Engineering
- Length: 260mm (optimized for two-stage processing)
- Internal Diameter: 15mm (precision-honed for minimal clearance)
- External Diameter: 22mm (enhanced thermal mass for stability)
- Material: Hardened tool steel with wear-resistant treatment
- Thermal Characteristics: Uniform heat distribution profile
Two-Stage Screw Design
Overall Specifications:
- Total Length: 270mm
- Flight Angle: 23° (optimized for material transport and mixing)
- Channel Depth: 3.5mm (progressive compression design)
- Flight Diameter: 14.25mm (precision clearance control)
Stage 1: Feed Section
- Diameter: 8.5mm (deep channel for maximum material intake)
- Function: High-capacity material feeding and initial compression
- Design Features: Optimized for various pellet geometries and bulk densities
- Performance: Enhanced material pickup and consistent feeding rates
Stage 2: Metering Section
- Diameter: 10.5mm (controlled compression for pressure development)
- Compression Ratio: 1.24:1 (8.5mm to 10.5mm progression)
- Function: Pressure generation and melt homogenization
- Design Features: Balanced shear and compression for optimal processing
Material Application Benefits
Enhanced Processing Capabilities
- High-viscosity polymers benefit from increased pressure development
- Filled and reinforced materials achieve better dispersion and mixing
- Temperature-sensitive materials process with reduced thermal exposure
- Recycled content materials handle more effectively with improved feeding
- Multi-component systems achieve superior homogenization
Quality Improvements
- Reduced diameter variation through consistent pressure control
- Improved surface finish via enhanced melt quality
- Better layer adhesion for 3D printing applications
- Enhanced mechanical properties through improved mixing
- Reduced contamination through efficient material turnover
Professional Applications
Research & Development
- Material characterization studies requiring consistent processing conditions
- Composite development with enhanced mixing capabilities
- Process optimization through improved pressure control
- Quality validation with repeatable processing parameters
Small-Scale Production
- Prototype manufacturing with production-quality results
- Custom material processing for specialized applications
- Quality control through consistent processing conditions
- Efficiency improvements for cost-effective operations
Installation & Compatibility
System Integration
- Compatible with Noztek Touch extruders for immediate upgrade capability
- Plug-and-play installation with existing heating and control systems
- Minimal recalibration required for existing process parameters
- Full technical support for installation and optimization
Maintenance Advantages
- Easy disassembly for cleaning and inspection
- Wear-resistant components for extended service life
- Replaceable elements for cost-effective maintenance
- Precision manufacturing ensures consistent replacement part fit
The Noztek Two-Stage Screw System represents a significant advancement in desktop extrusion technology, delivering industrial-performance capabilities in a compact, user-friendly format ideal for research, development, and specialized production applications.
Watch the video here:
To remove the barrel assembly for cleaning or replacement, the process is straightforward. Simply remove the sensor, heater band, front bracket, and then unscrew the bolts from the rear bracket. Finally, unscrew the grub screw that connects the coupler and the screw to detach the barrel assembly. The rear assembly is equipped with a deep groove thrust bearing to counteract any backward pressure from the screw, ensuring smooth operation during extrusion.
Looking for a replacement Barrel & Screw for NoztekXcalibur? Click Here
Pro & Touch Replacement Barrel & Screw
£395.00
